TWIN-DIATONIC HARPS - A World of New Possibilities!



The idea of combining two 10-hole harps behind a single mouthpiece is not new - but it's not easy to get good reed response, and has never been done convincingly before. That's all changed! After intensive R&D over the past couple of years, I've come up with a quick-change assembly that really works. I'm now releasing my ground-breaking Twin-Diatonic harps in a range of exciting options - check out the two videos to see and hear them all in action.

THS Diatonic THS Diatonic THS Diatonic THS Diatonic
The OctaHarp, TremoloHarp, and OctaHarp Selectable give 10-hole players access to rich double-reed sounds in the size and hole spacing they're used to, for the first time! The OctaHarp and TremoloHarp have two harps stacked behind a single mouthpiece unit, and enable you to swap in different keys quickly with a few turns on the retaining screws. The patent pending OctaHarp Selectable is two harps inline an octave apart, which can be moved laterally against each other. They can be played together for a full octave sound, or just the front harp can be selected with a simple thumb movement- allowing typical single-reed playing with bends. A quick thumb movement puts them back into octave mode again.
THS Diatonic THS Diatonic THS Diatonic

TWIN-DIATONIC HARPS Part 1 - Octaharp, TremoloHarp, & OctaHarp Selectable:

TWIN-DIATONIC HARPS Part 2 - MiniChrom, DoubleHarp Selectable, X-Reed UniBender:

TWIN-DIATONIC HARPS ASSEMBLY

My Switch-Harp uses the same format to achieve two new and exciting possibilities. A patent-pending self sealing slider mouthpiece switches your breath to each of the harps in turn. If they are tuned a semitonbe apart (eg. C and Db harps), you have a mini chromatic: a real chromatic blues harp, with all the bending and soul you're used to, PLUS the chromatic notes built in! This makes playing jazz and other advanced forms of music much easier on the 10-hole harp: just move the slider and you have all those notes that were only attainable with overblows in the past. And possibly, with expert overblow setup and no valves, it could be possible to have the slider notes PLUS overblows on two harps at your disposal. But in half-valved setup it works great -as you can hear on the Part 2 video. It doesn't stop there: the same front unit with slider could be used to house two harps in widely different keys, or even different tunings! Just move the slide and suddenly you're playing a completely different harp, without taking your lips off the instrument. This has a lot of cool possibilities... If this is your main use, you could remove the spring so the slider stays in place at either of the two positions.
THS Diatonic THS Diatonic THS Diatonic
The X-Reed UniBender uses a patent-pending front valve strip to isolate two attached harps according to your breath. Blow, and the air only goes to the top harp; draw, and only the bottom harp sounds. This gives several interesting new harmonica options, with the advantage of no valves on the reedplates (eg. other types of octave and tremolo harps). But the one I show in the video is an all-bending x-reed type. 20 of its reeds make the main notes, and the other 20 are x-reeds which allow them ALL to bend - as much as you want!

An obvious choice is to make 8 of the bends the same as on stock harps (which only has 8 bendable notes), and the rest to go down a semitone. This gives a fully chromatic harp with bends alone, plus lots of cool 'bend enharmonics': notes you can get two ways, bending or non-bending. Another way is to tune the x-reed so the bends go down to the next note of the home scale, whatever that is. It's very expressive - I demonstrate a Solo tuned version in the video.

THE OCTAHARP

I've created two types of small 10-hole octave harmonica: the OctaHarp and the OctaHarp Selectable. Both of them combine two diatonic harps an octave apart to make one compact instrument with the big double-reed octave sound. It's a very satisfying tonality that suits many kinds of music - Cajun and Irish would be two that spring to mind, but octave playing can suit any style you can think of! My OctaHarp stacks two 10-hole harps one above the other behind a single mouthpiece, one harp in the standard range and the other in the same key one octave lower, allowing you to play both simultaneously. At this stage three manufacturers make low-range harps, Hohner, Suzuki and Seydel, and I've designed a version of the OctaHarp to fit each brand.
THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic
Because there are double the number of reeds in the airstream at all times, to avoid excessive air loss and get the best sound, full valving is pretty much essential for the OctaHarp. Without valves the instrument will work but sound quite airy; with valves it will sound crisp and loud. In order to facilitate adding valves to various brands and sizes of diatonic harps, I've created my valve friendly PowerCombs and easy-fit Stealth-Valves . These have special 'valve pockets' at the rear of each chamber, so the valve bases don't get snagged between the comb and reedplates.

While you can just buy the front unit to assemble your own OctaHarp using stock combs, trying to fit single valves to combs not designed for them can be tricky and frustrating. Adding my specially-designed PowerCombs and Stealth-Valves to your order will simplify and speed up the process of making an OctaHarp that sounds great straight away. They are available at half-price when ordered for the TwinDiatonic harps.


Joel Andersson is a great player as well as the Hohner Recommended Customiser for the OctaHarp and my other TwinDiatonics. If you want an Octaharp that sounds like this, Joel will make it for you!

ORDERING OPTIONS

 The one essential part you require is the Front Unit. However, where appropriate, we recommend you also purchase PowerCombs and Stealth-Valves. They are specially designed to suit the TwinDiatonic harps; we can't guarantee all other combs will fit perfectly, and combs without valve pockets will definitely cause more hassle to install valves. (Lipped-comb versions will use the stock comb). You need to supply the harmonicas, or order them from your customiser. Please watch all the relevant videos above to help you make an informed choice of ordering option.

1. POWER-PARTS KIT

To slash the price and offer immediate shipping, we've added a Raw Parts Only option for all versions of the OctaHarp. I've shot a detailed instructional video on how to finish and assemble your PowerParts Kit for it - please watch before you buy! If you're the hands-on type and comfortable working with basic tools, you'll have no trouble following along with the simple steps involved. You'll gain knowledge and satisfaction making it  yourself, and save money in the process. Follow the video closely and you'll be sure to get a good outcome. However our responsibility is only with the PowerParts we make and supply, not with your finishing/assembly skills - the end result is up to you!

2. FINISHED PARTS

If you wish to pay extra for us to do the finishing of the parts, then go for this option. This will add about a week to the shipping time. Remember that you will still need to supply the harmonicas and fit them to the parts you choose.

3. CUSTOMISER OPTION

If you would prefer to receive the complete OctaHarp with harps assembled and finished to the highest standard then please see our recommended customiser(s) below.
Joel Andersson - Sweden

Joel Andersson Joel is a Hohner Affiliated Customizer and has the attention of the world's premier harmonica players, inventors, and innovators. He has built a reputation as a quality customizer from his clients around the world. By their testimony, J.A. Custom Harmonicas, based on Hohner reed and cover plates, increase a player's authority over the instrument, regardless of playing style or experience. All customization is completed by Joel, and his workshop features both hand and electric tools, including CNC milling machines, CNC lasers, and lathes.  Joel spends most of his time building and developing custom harmonicas and accessories, but he is regarded as one of the finest Irish music harmonicists in the world. In 2014 he came in third place at the biggest Irish music competition in the world, Fleadh Cheoil na hEiréann.

Joel is our recommended customiser to make your complete OctaHarp . If you would like to commission Joel then please place your order with him on his website below.

Email: info@jaharmonicas.com
Website: jaharmonicas.com

OctaHarp Finished Parts


OctaHarp PowerParts Kit

(You assemble and finish it)

£40

Model:


Tech videos

Video 0 applies only to the PowerParts buying option. Video 1 is relevant to all buying options.

Tech 0: Making an Octa-Harp from the PowerParts kit

Tech 1: Assembly

Items you will need (PowerParts option)

  • Coarse/fine sand paper with flat secure base
  • Sanding sponge block
  • Superglue (thin)
  • Wire brush
  • Plastic weld solvent
  • Paintbrush (approx. 10mm wide)
  • Screwdriver (Phillips #1)
  • Masking tape
  • Thin wire or small nail for applying superglue
  • Vacuum cleaner
  • Dust mask

THE OCTAHARP SELECTABLE

It's back, due to popular demand!

The OctaHarp Selectable differs from my other small 10-hole octave harmonica (the OctaHarp) in two significant ways: the twin harmonicas are inline front-to-back, and you can choose to play them separately or together! The front harp is in the standard range, and the rear harp in the low range.

Only certain brands and models are available in both standard and low ranges. At present the OctaHarp Selectable is designed for Hohner (Thunderbird/Marine Band 1896/Crossover/Marine Band Deluxe) , Suzuki (Manji/Low Manji) and Seydel (Classic, 1847, Noble, Lightning - plus Low Versions) harmonicas.


We now offer gasket valves: even easier to install!
Watch the GV video on this page.

The front harp has holes all the way through the back of its comb, which are blocked in the default position, so just the front harp sounds. The front comb slides along the face of the rear one, and is held in place by a small spring. With a quick press of your thumb or finger the two combs come into line, the through-holes open, and all the reeds on both harmonicas vibrate to give you that fat, rich octave sound. In single-harp mode the front harp plays exactly like a normal blues harp, with all the bending and expression you're used to. But you can instantly switch to playing it as an octave harmonica - it's truly two great harps in one! Check out the video to hear it in action.

THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic
While the harps will play OK without valves (especially if reeds are well gapped and embossed), I strongly recommend adding valves to get the best tone, power and response. The front high-range diatonic should be half-valved, to reduce air loss whilst still allowing all your normal bends, and the rear low-range harp should be fully valved - to bring out the true richness of those low-end reeds. In order to facilitate adding valves to the Hohner and Suzuki harps for this model, I've created my easy-fit Gasket-Valves. They are available at a discounted price when ordered for the OctaHarp Selectable. Watch the two videos under the order boxes to see how easy it is to fit them. In my experience, when I've put standard and low-range harmonicas from the same manufacturer inline they play well in tune, because at the factory they are tuned to the same tuning scheme. But if you find there is some 'beating' between reeds an octave apart, fine tuning may be required. Watch the video under the order boxes to see how to fine-tune for pure octaves - it's not difficult!

ORDERING OPTIONS

POWER-PARTS KIT

For those of you with good tool skills and experience working with harmonicas, the cheapest option is to buy the Raw Parts Kit option of the OctaHarp-Selectable. Of course, you need to supply the two harmonicas!

I've shot a detailed instructional video on how to finish and assemble your PowerParts Kit for it - please watch before you buy. If you're the hands-on type and comfortable working with basic tools, you'll have no trouble following along with the simple steps involved.


André Coelho plays his Custom Version
However our responsibility is only with the PowerParts we make and supply, not with your finishing/assembly skills - the end result is up to you.

If you don’t have the necessary making skills, or simply prefer to get a fantastic OctaHarp Selectable ready to play awesomely out of the box, we will send your PowerParts Kit to a harmonica tech/customiser of your choice to do the job for you. In that case the arrangement for the overall price and features you want is entirely between you and them. Here is a list of people you can contact to do the work:

RECOMMENDED CUSTOMISERS

André Coelho

André Coelho André Coelho
Portugal customiser

Email
Linktree

Kinya Pollard

Kinya Pollard Kinya Pollard
USA customiser

Website
Email

THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic
Please note that order tracking is not provided by default, but can be purchased in the cart. For available shipping options please see our
★ Terms & Conditions ★



OctaHarp Selectable PowerParts Kit

Base Price: £60

HARMONICA TYPE*:

GASKET VALVES:

COLOUR:

RECOMMENDED CUSTOMISER:



* APPLICABLE HARMONICA MODELS:
HOHNER: Marine Band 1896/Deluxe, Crossover, Thunderbird
SUZUKI: Manji & Low Manji
SEYDEL: Classic, 1847, Noble, Lightning - plus Low Versions

Tech videos

Tech 1: Making an Octa-Harp Selectable from the PowerParts kit

Tech 2: Fine-tuning for Pure Octaves

Gasket Valves: Introduction and Fitting Demos

Items you will need (PowerParts DIY option)

  • Coarse/fine sand paper with flat secure base
  • Sanding sponge block
  • Superglue (thick)
  • Wire brush
  • Plastic weld solvent
  • Paintbrush (approx. 10mm wide)
  • Screwdriver (Phillips #1)
  • Masking tape
  • Thin wire or small nail for applying superglue
  • Vaseline or Slide Oil
  • Vacuum cleaner
  • Ruler
  • Dust mask

THE TREMOLOHARP

The double-reed tremolo sound is a popular tonality for harmonicas, but up till now has never been available in 10-hole diatonic harp size. My new TremoloHarp stacks two diatonic harps in the same key one above the other behind a single mouthpiece, one harp tuned slightly sharper. This allows you to play both simultaneously and gives 10-hole harp players the pleasing tremolo effect in a size they are accustomed to. Check out the video below to hear the sound, from 4:05:
THS Diatonic THS Diatonic
Because there are double the number of reeds in the airstream at all times, to avoid excessive air loss and get the best sound from my TremoloHarp, full valving is strongly recommended. To simplify this process, I've created my easy-fit Stealth-Valves and valve-friendly PowerCombs. These have special 'valve pockets' at the rear of each chamber, so the valve bases don't get snagged between the comb and reedplates.

While you can just buy the front unit to assemble your own TremoloHarp using stock combs, trying to fit single valves to combs not designed for them can be tricky and frustrating. Adding my specially-designed PowerCombs and Stealth-Valves to your order will simplify and speed up the process of making a TremoloHarp that sounds great straight away. They are available at a half-price when ordered for all the TwinDiatonic harps. Watch the videos to see how the valving is done, and how these harps can be assembled/disassembled very quickly and easily:

ORDERING OPTIONS

 The one essential part you require is the Front Unit. However, where appropriate, we recommend you also purchase PowerCombs and Stealth-Valves. They are specially designed to suit the TwinDiatonic harps; we can't guarantee all other combs will fit perfectly, and combs without valve pockets will definitely cause more hassle to install valves. (Lipped-comb versions will use the stock comb). You need to supply the harmonicas, or order them from your customiser. Please watch all the relevant videos above to help you make an informed choice of ordering option.

POWER-PARTS KIT
To slash the price and offer immediate shipping, we've added a Raw Parts Only option for all versions of the TremoloHarp. I've shot a detailed instructional video on how to finish and assemble your PowerParts Kit for it - please watch before you buy! If you're the hands-on type and comfortable working with basic tools, you'll have no trouble following along with the simple steps involved. You'll gain knowledge and satisfaction making it  yourself, and save money in the process. Follow the video closely and you'll be sure to get a good outcome. However our responsibility is only with the PowerParts we make and supply, not with your finishing/assembly skills - the end result is up to you. Or, if you prefer, send your PowerParts Kit to a harmonica tech/customiser of your choice to do the job for you; in that case the arrangement is entirely between you and them. Here is a list of people you can contact to do the work: Harp Techs.

FINISHED PARTS
If you wish to pay extra for us to do the finishing/assembly of the parts, the choice is yours. It will add about a week to the shipping time. Remember you will still need to supply the harmonicas and fit them to the parts you choose, or get a customiser to do that job.

TremoloHarp Finished Product

Base Price: £80

STORAGE TUBE (£10):

HARMONICA TYPE:

FRONTPIECE COLOUR:

GASKET VALVES (£10):


TremoloHarp PowerParts Kit

(You assemble and finish it)

Base Price: £40 (price reduces for multiple buy)

STORAGE TUBE (£10):

HARMONICA TYPE:

FRONTPIECE COLOUR:

GASKET VALVES (£10):


Tech videos

Video 0 applies only to the PowerParts buying option. Video 1 is relevant to all buying options.

Tech 0: Making a TremoloHarp/OctaHarp from the PowerParts kit

Tech 1: Assembly

Items you will need (PowerParts option)

  • Coarse/fine sand paper with flat secure base
  • Sanding sponge block
  • Superglue (thin)
  • Wire brush
  • Plastic weld solvent
  • Paintbrush (approx. 10mm wide)
  • Screwdriver (Phillips #1)
  • Masking tape
  • Thin wire or small nail for applying superglue
  • Vacuum cleaner
  • Dust mask

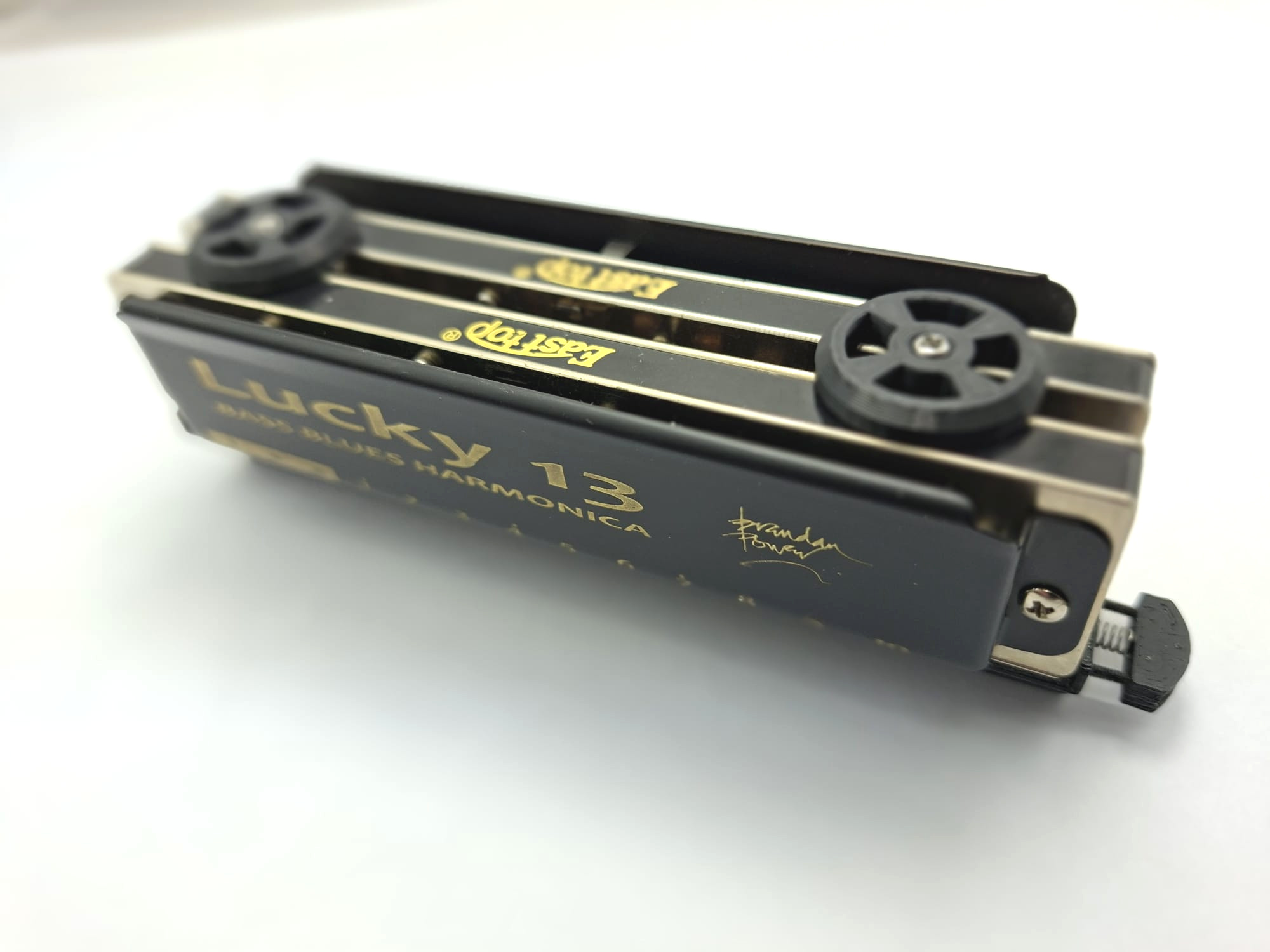

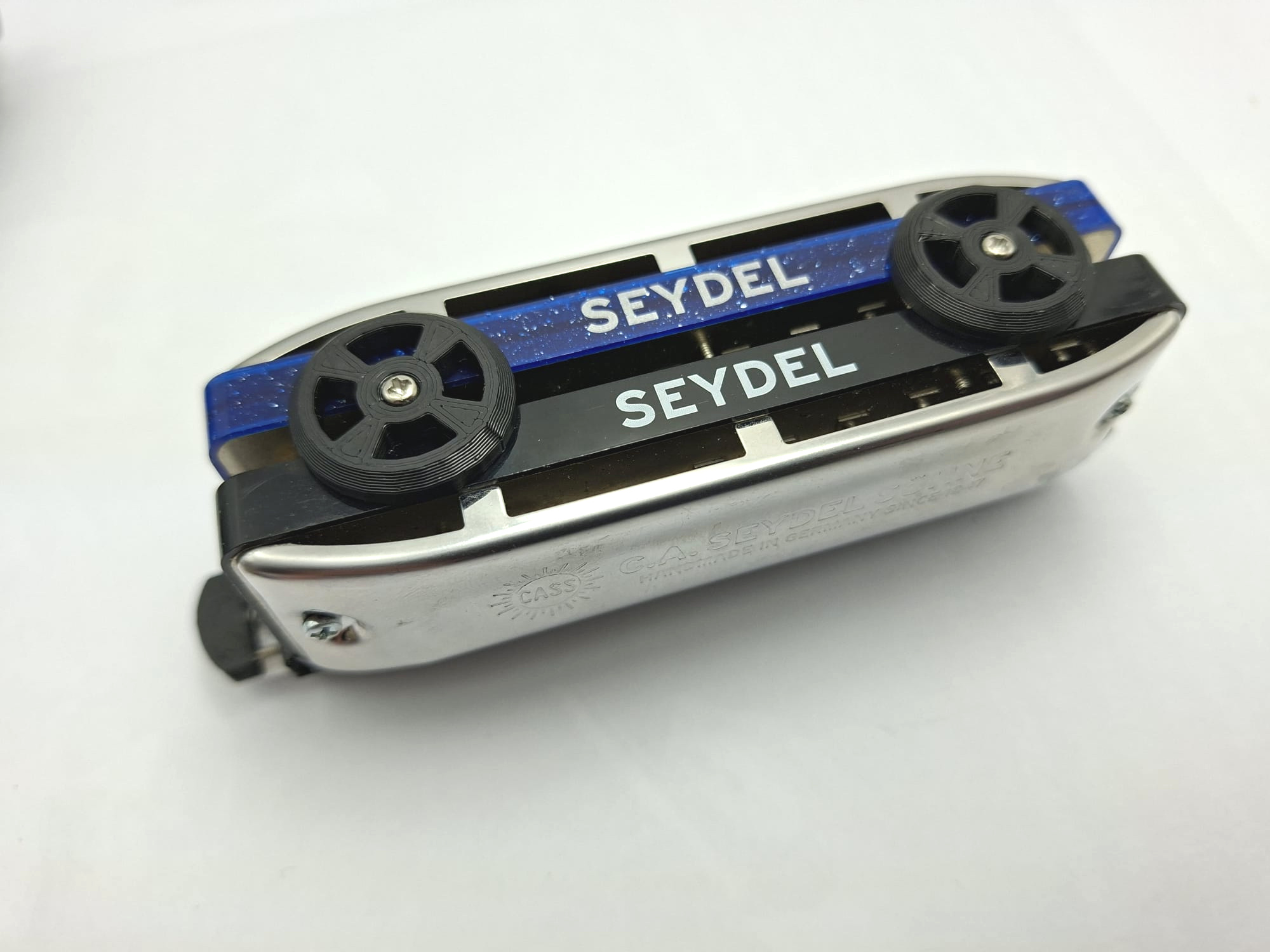

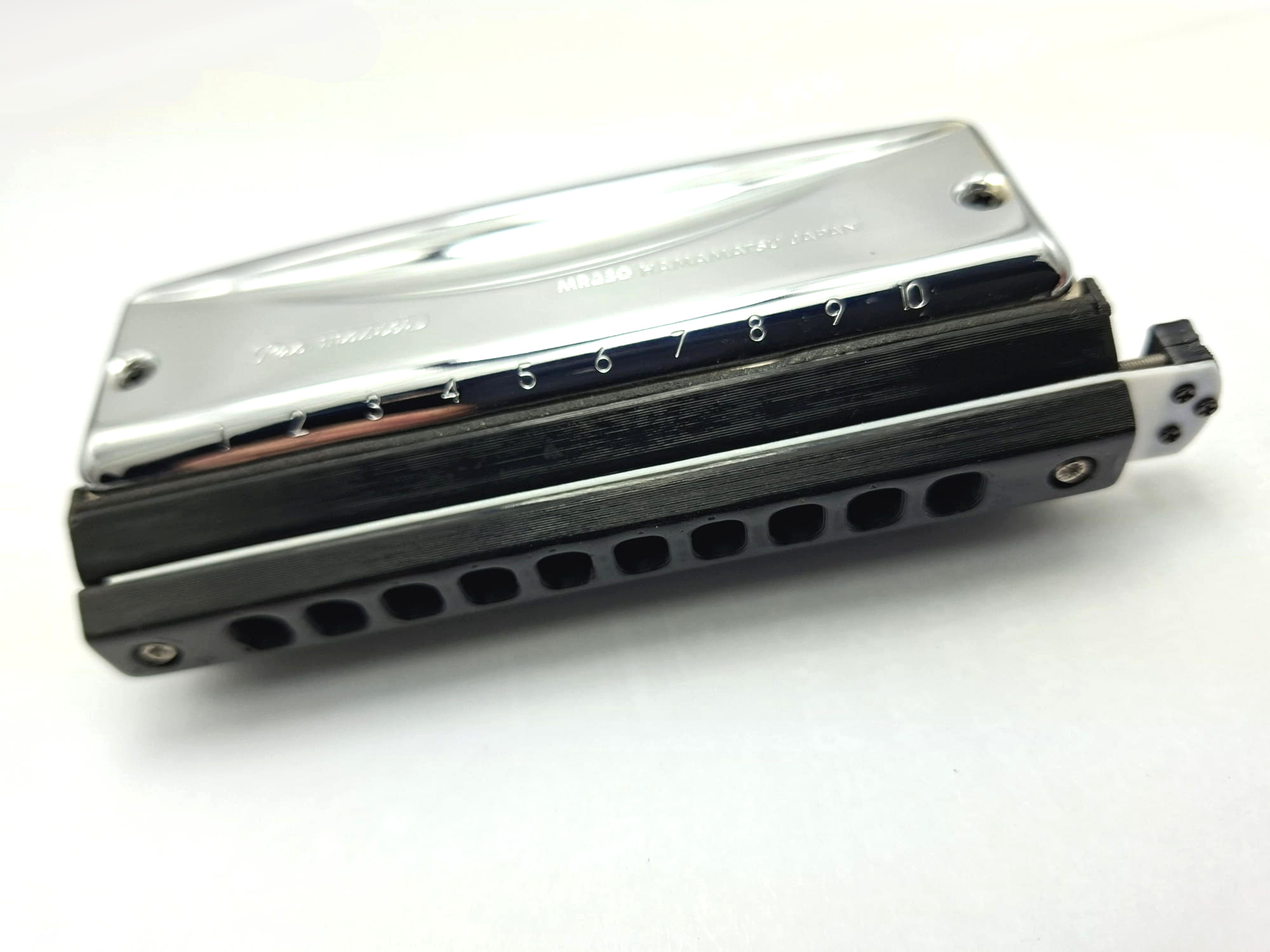

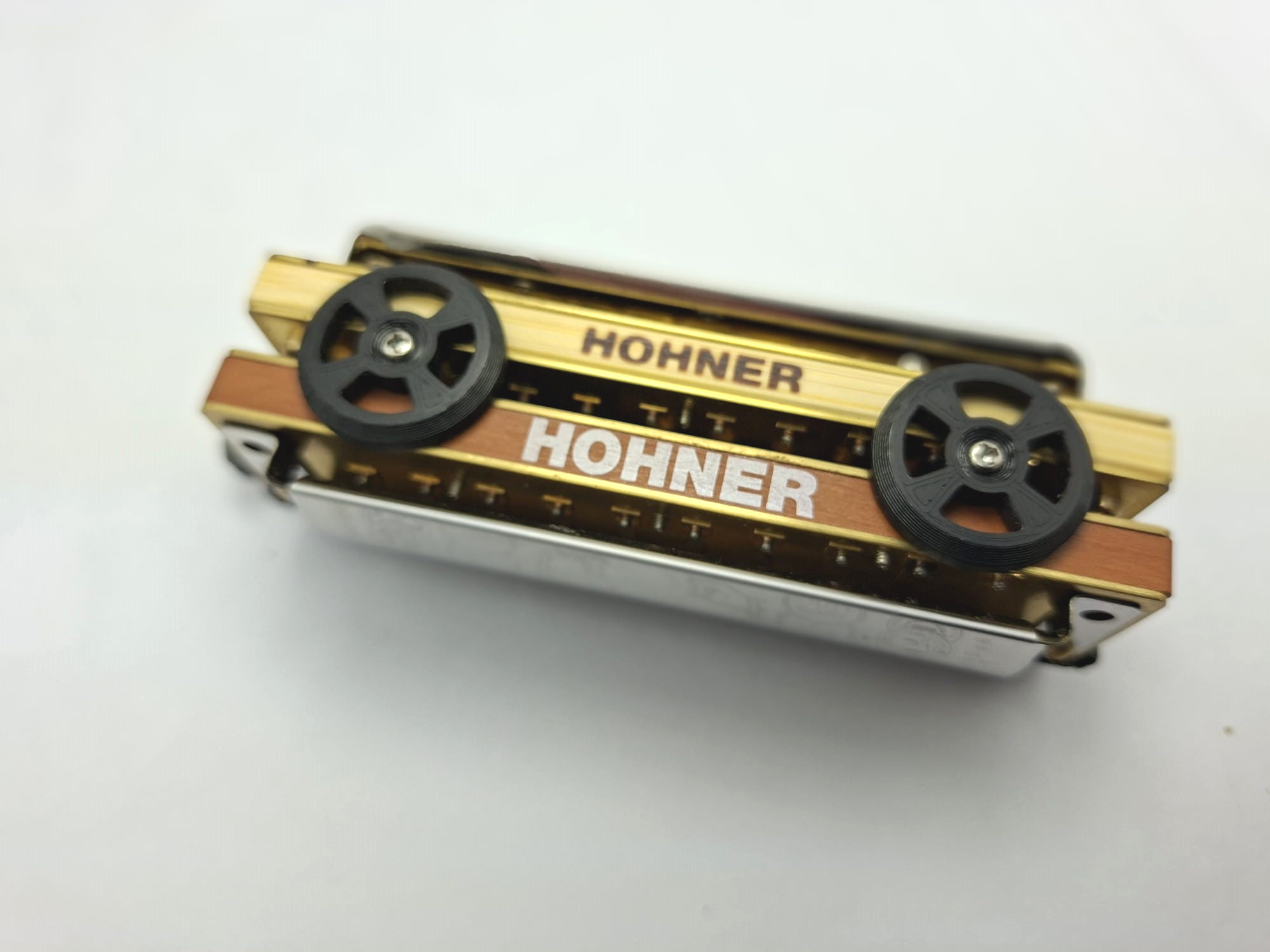

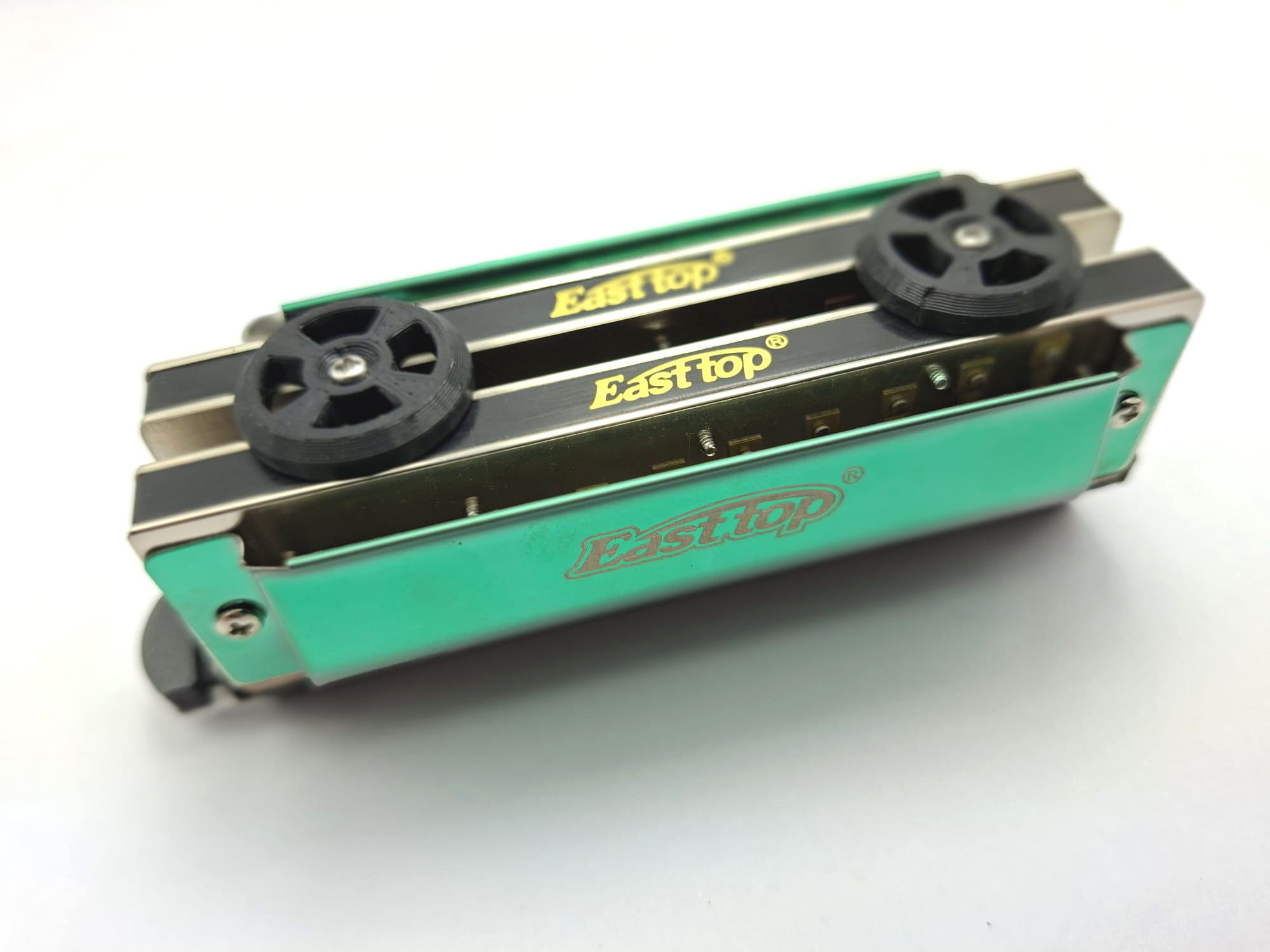

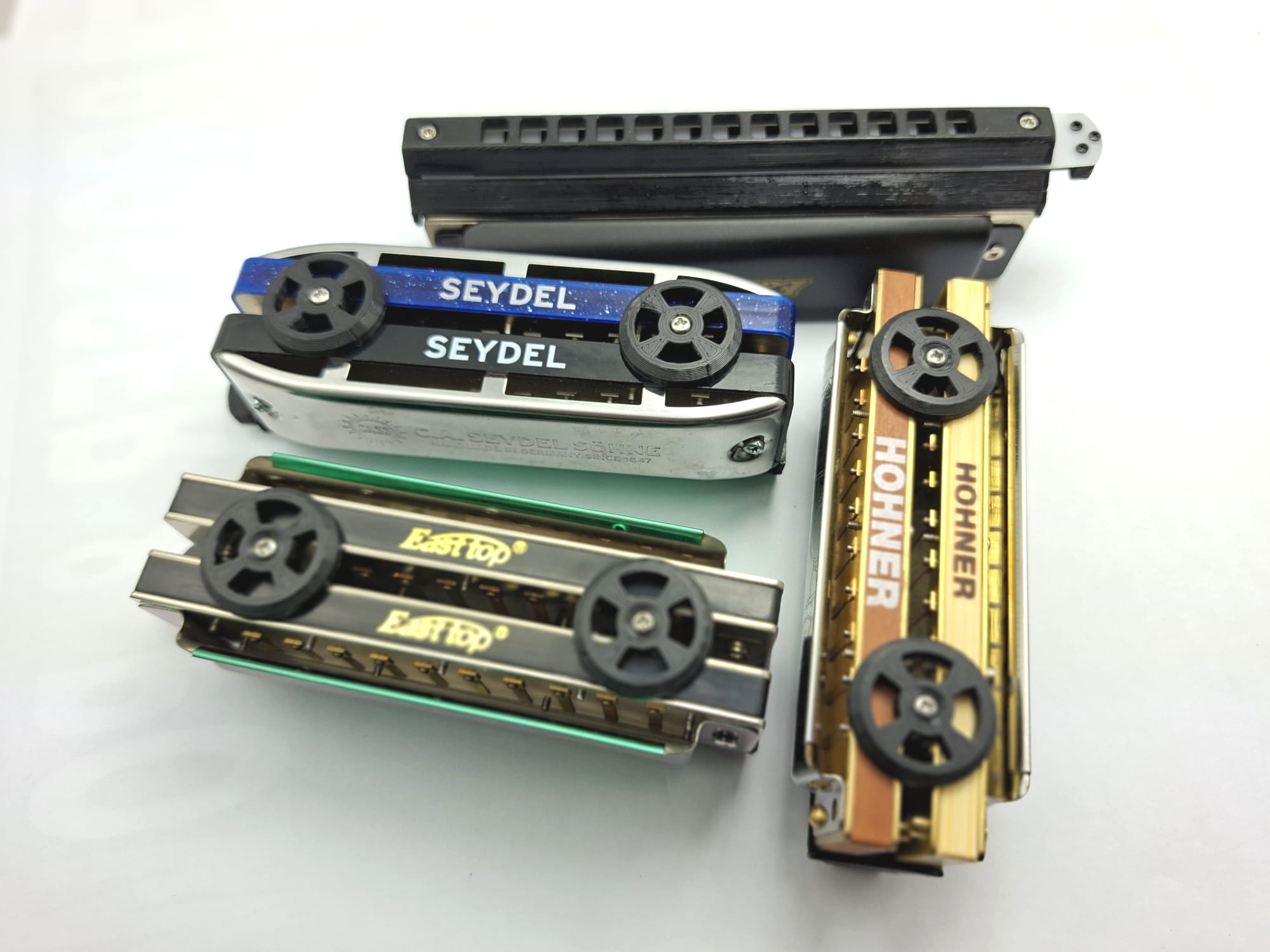

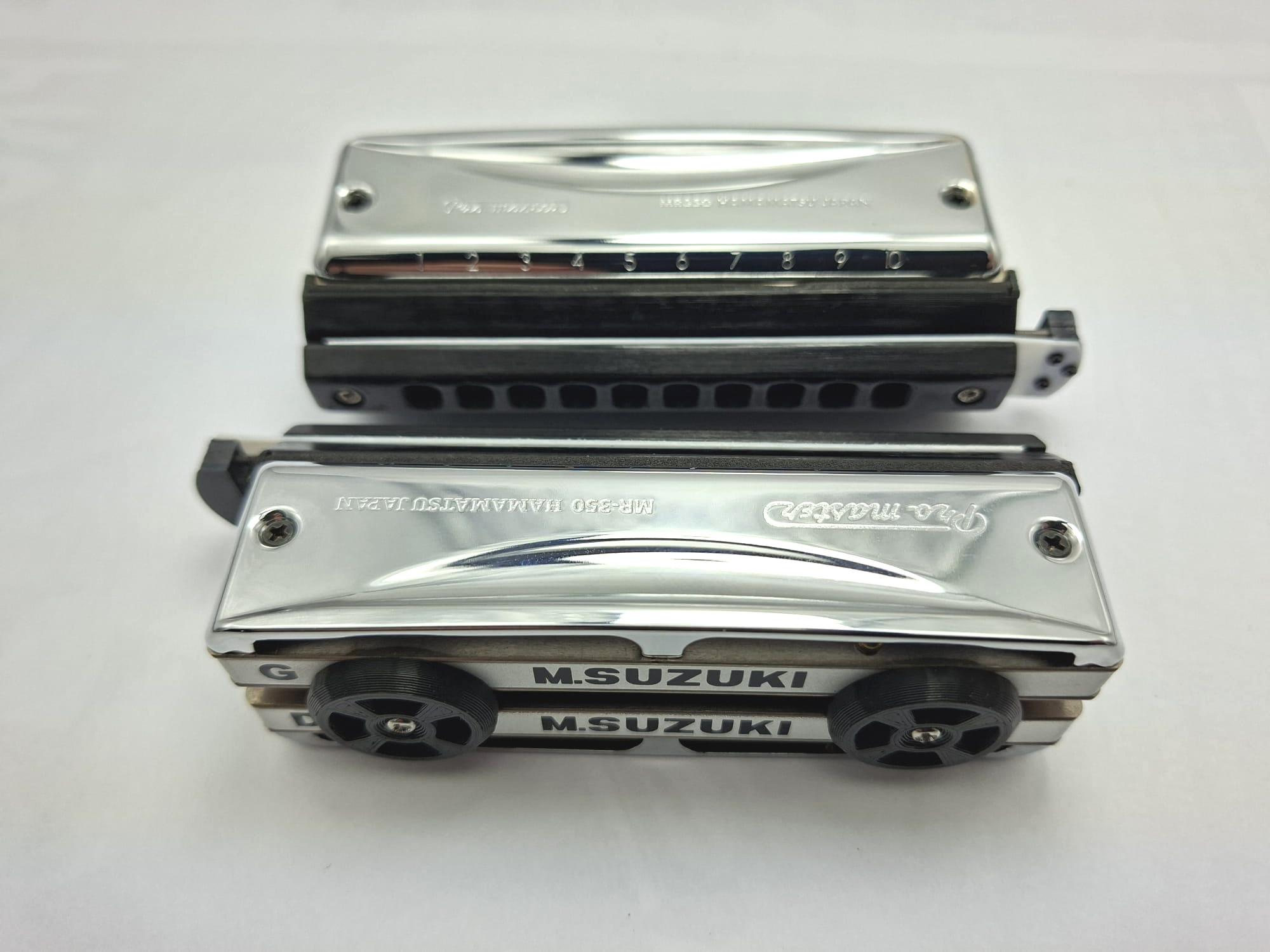

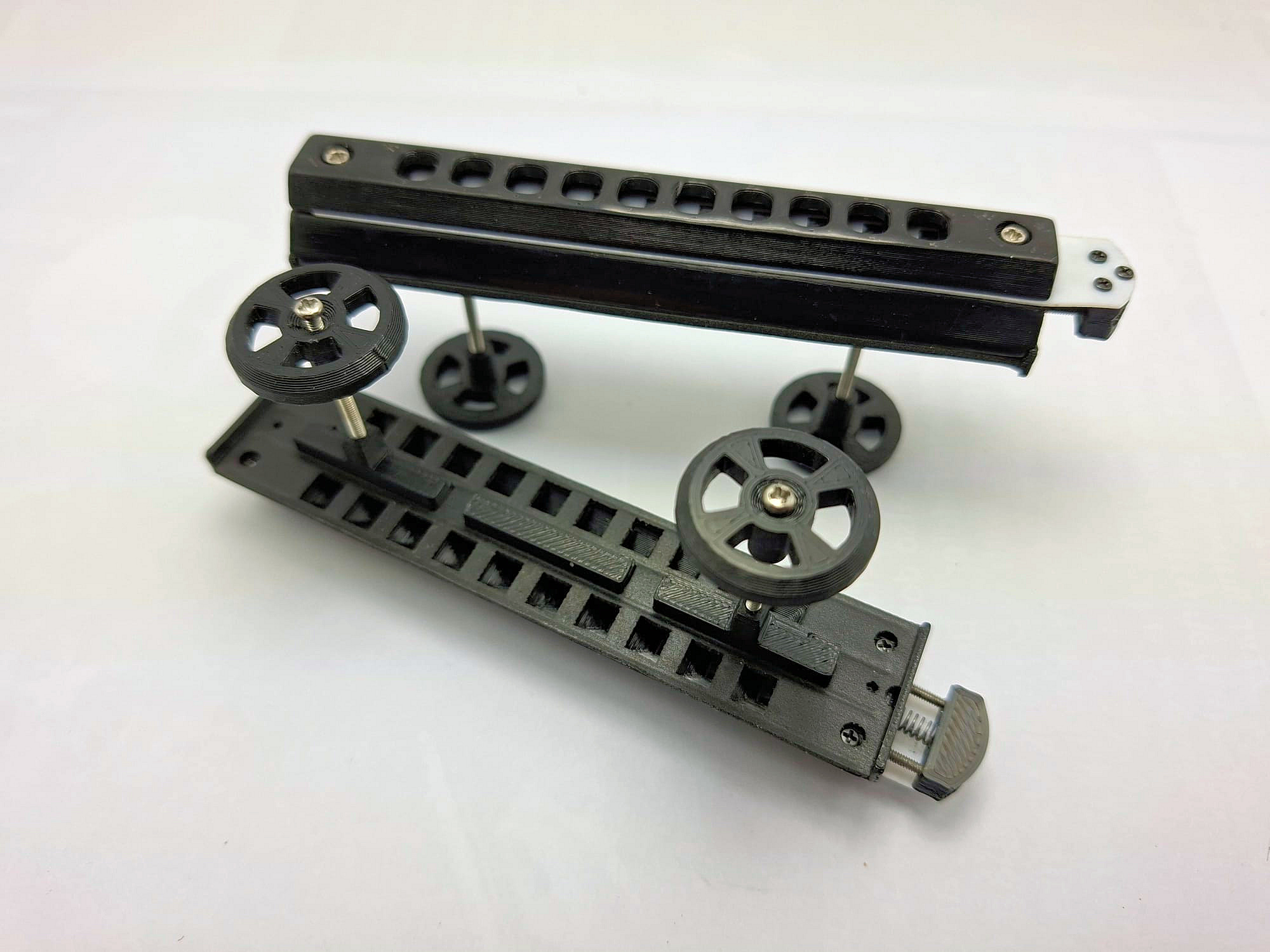

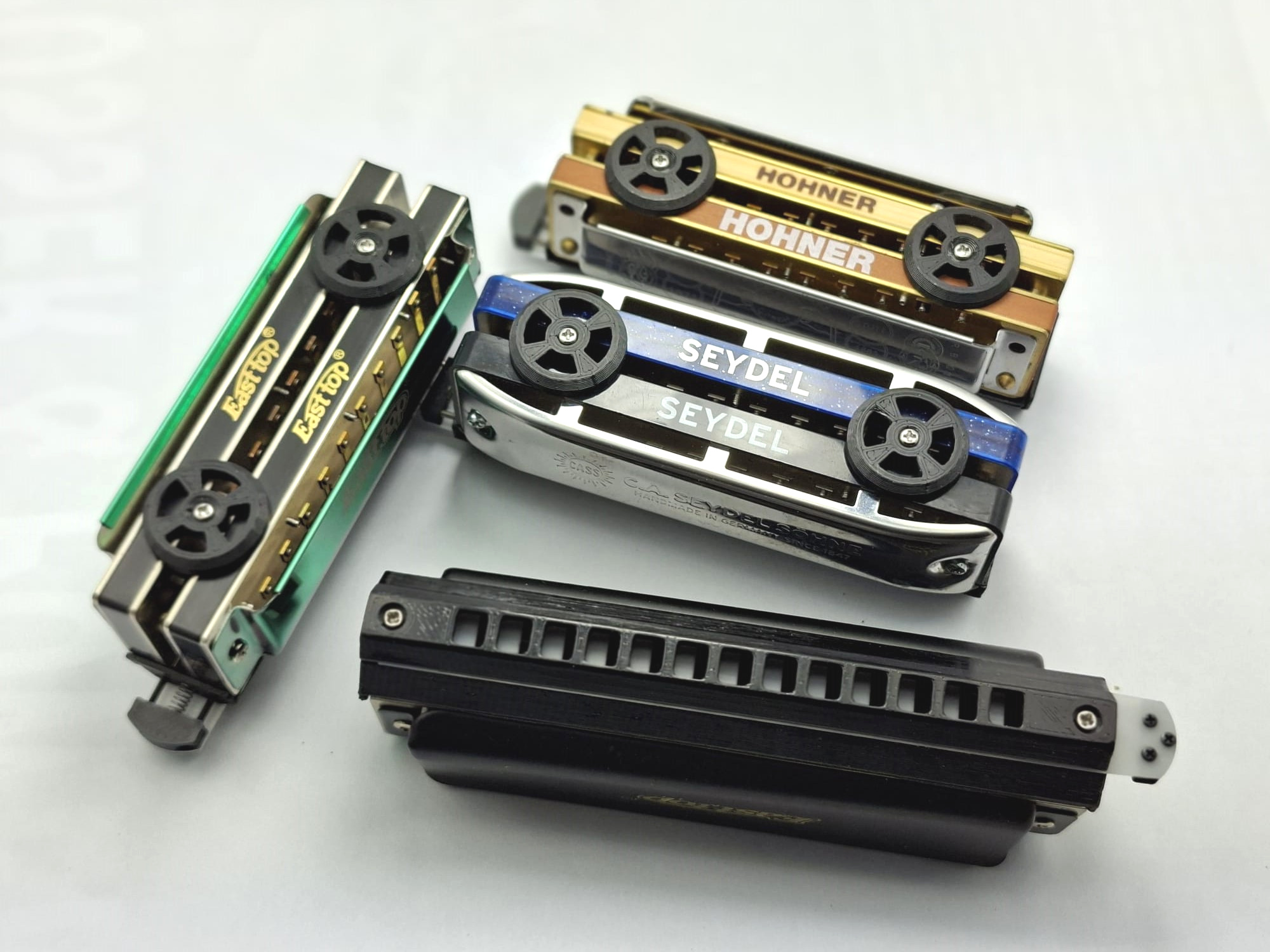

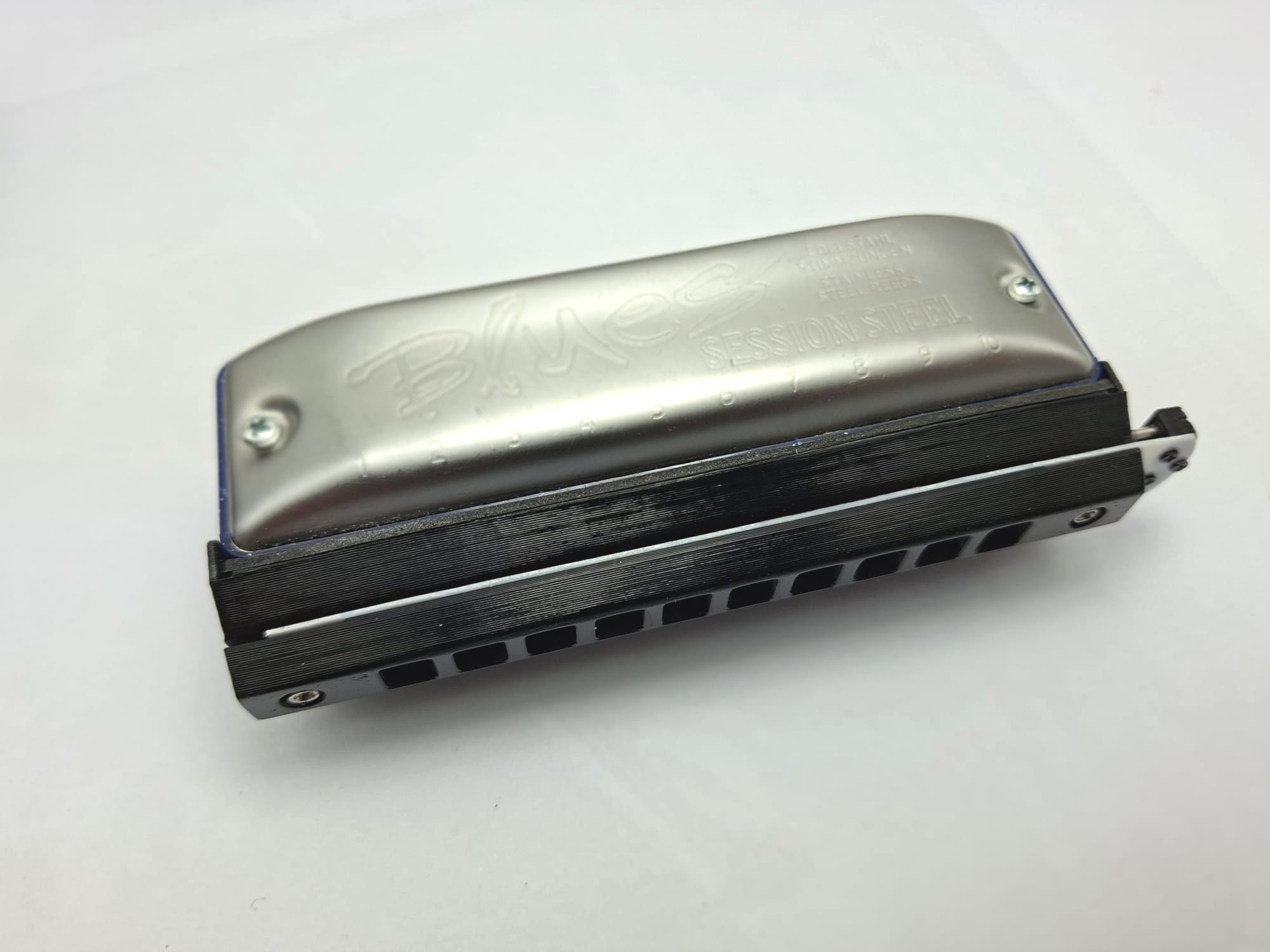

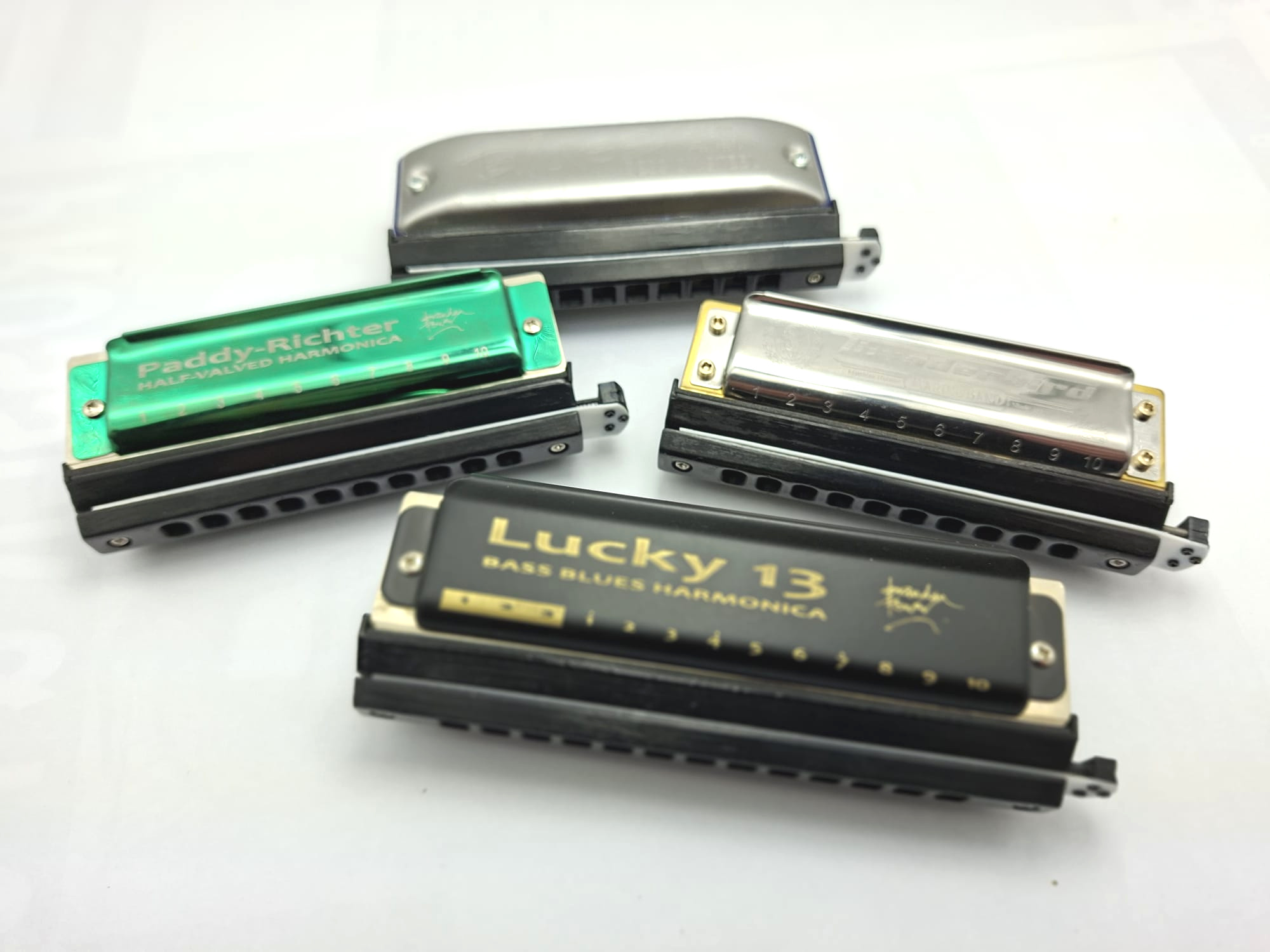

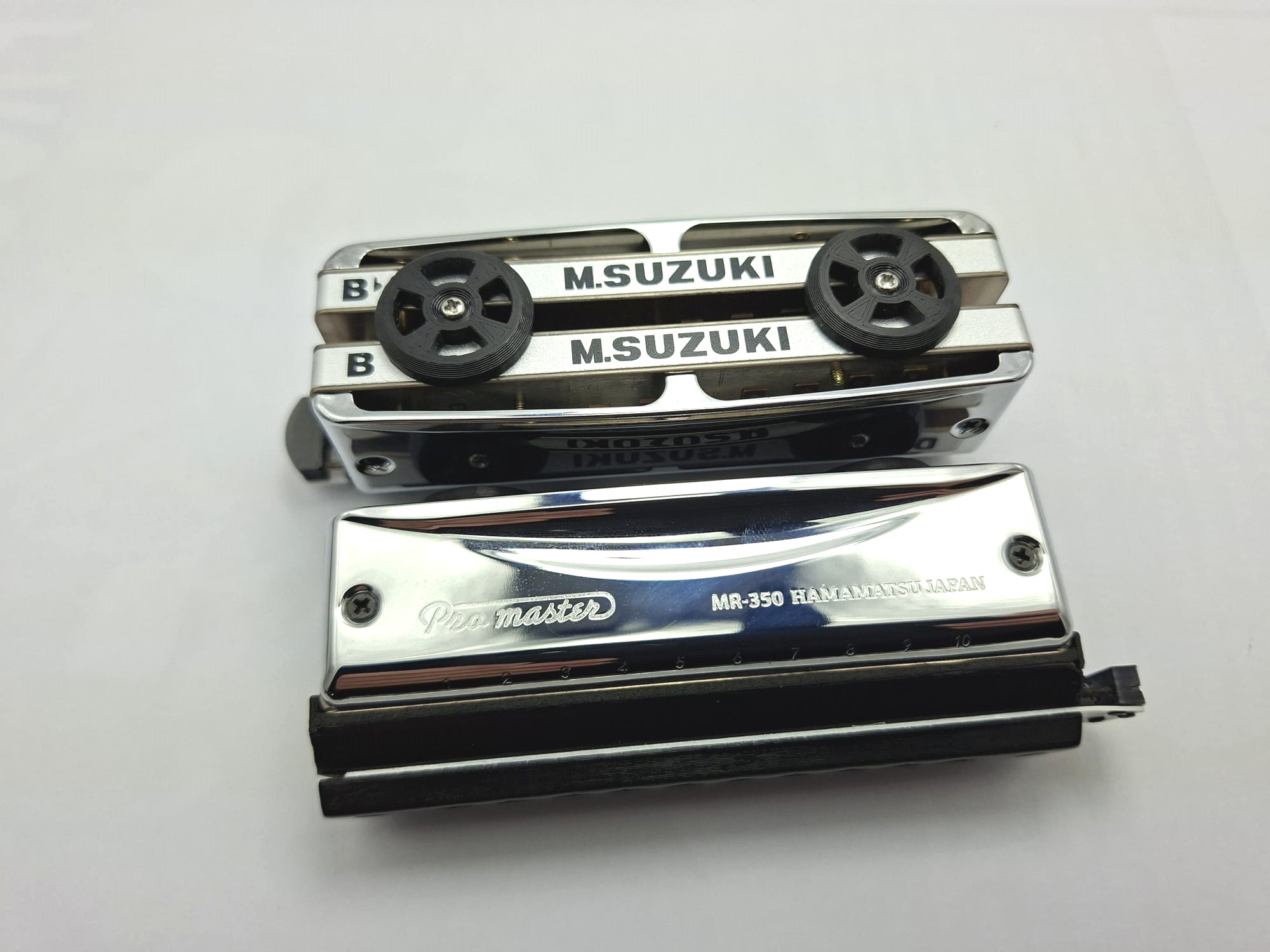

The Switch-Harp

This TwinDiatonic harmonica can be configured in so many ways! It's called the Switch-Harp because the self-sealing horizontal sliding mouthpiece (patent pending) allows you to switch instantly between two 10-hole diatonics attached behind; the sound you get all depends on what setup, key and tuning you choose for the two harps. The mouth hole spacing is the same as a normal harp, and you can operate the slider with your thumb in full-cupping position.

THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic

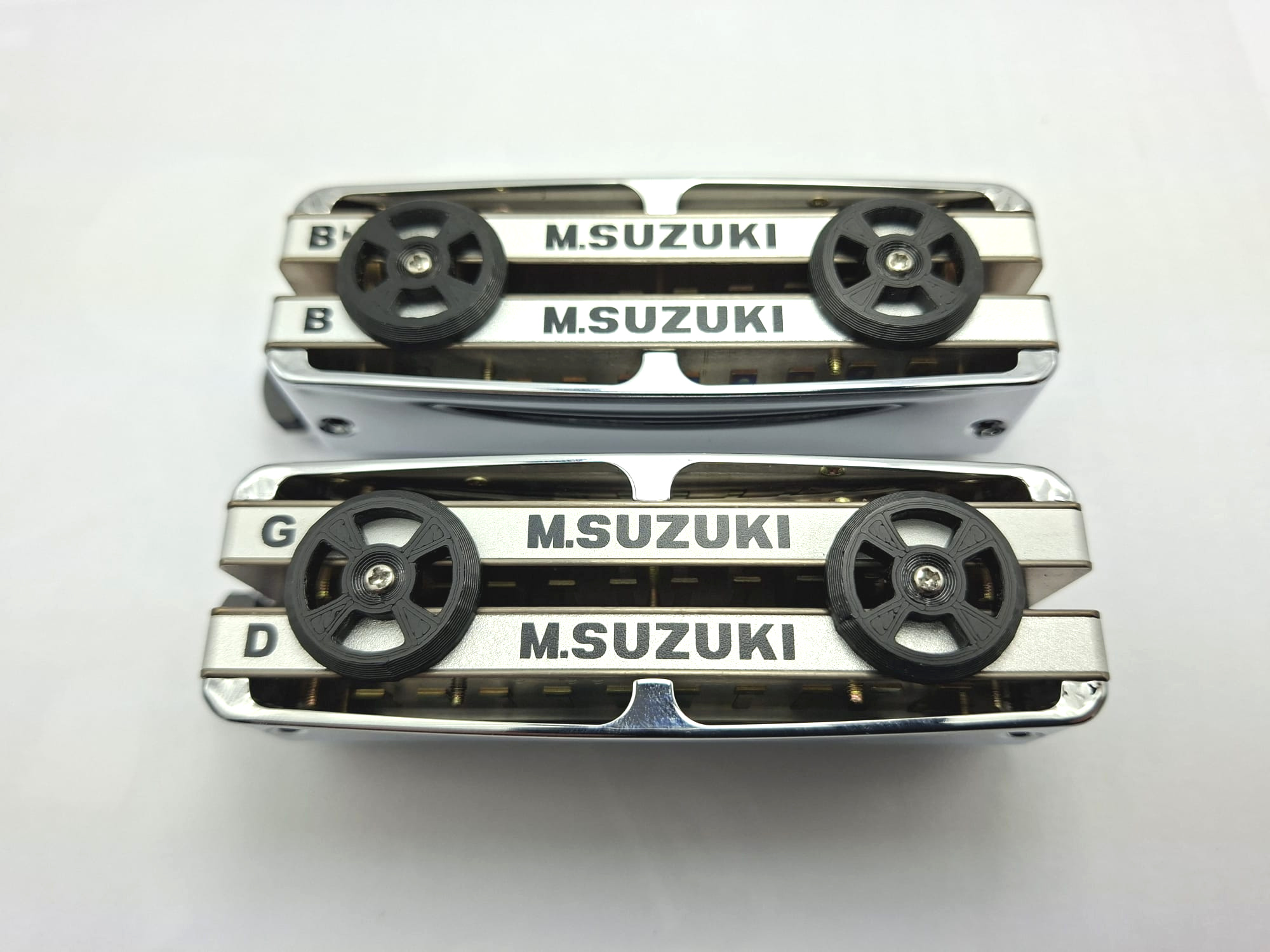

One obvious choice for the SwitchHarp would be for the slider to select between two harmonicas a semitone apart, to make a 10 hole mini-chromatic. This could be in standard Richter tuning, or in any one of many alternate tunings (eg. PowerBender, PowerDraw, Paddy Richter, Solo Tuning, Circular Tuning, whatever you like!). And you can swap in different keys quickly and easily. I prefer it in half-valved setup, allowing your normal bends but making the non-bending notes sound stronger and with valved expression. However if the harps behind are very well customised there is the option to have them un-valved, which would allow overblow playing for those used to that style.

But this is just one possibility for the Switch-Harp - here are some more ideas:

  1. You could install two harps in widely differing keys, to allow an instant harp change mid-song for a key change (as often happens in Country music). Or in a set of Irish tunes you could have G and D harps behind, so it works like my Irish Session Harp. In this setup you could remove the spring and tighten the front screws a little, so the mouthpiece/slider stays put in each position depending on which of the two rear harmonicas you want to play.

  2. Two harps in different tunings - eg. Richter and PowerBender tuning, or Richter/Country - so you get the best of both worlds with a quick push of the slide.

  3. Two harps in same key/tuning but different setup - eg. one half-valved, one un-valved. That way you can get overblows and valving expression in the same instrument.

Those are just a few of many options. My Switch-Harp is the Chamelion of the harmonica world! Because the same front unit will allow quick changes of the harps behind, you could use the same one for a multitude of twin-harp configurations if you want.

Here's a video showing how quick and easy it is to swap harps in and out, and another demonstrating the Switch-Harp as a MiniChrom:

The Switch-Harp in Action! Check out the funky sound and exciting new musical ideas/techniques in these two excellent videos by Mitch Weiss and Boris Plotnikov:

I recommend half-valving for most Switch-Harp options. To simplify this process, I've created my easy-fit Gasket Valves. which will simplify and speed up the process of making a Switch-Harp that sounds great straight away.

One thing to bear in mind is that the best range of keys is from C down. Higher keys suffer from detuning of the high reeds due to the Helmholtz Resonance Coupling phenomenon. Even on lower keys you may have to do a bit of fine tuning on the high notes to bring them up to tune with the rest of the harp.

This is not difficult for players used to fine tuning. Check the three tech videos opposite; the first shows how to finish and assemble the raw parts (if you are going for the PowerParts option), the second video is for general assembly with your harmonicas, and optimisation of the Switch-Harp, and the third video deals specifically with tuning compensation in the high octave.

THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic

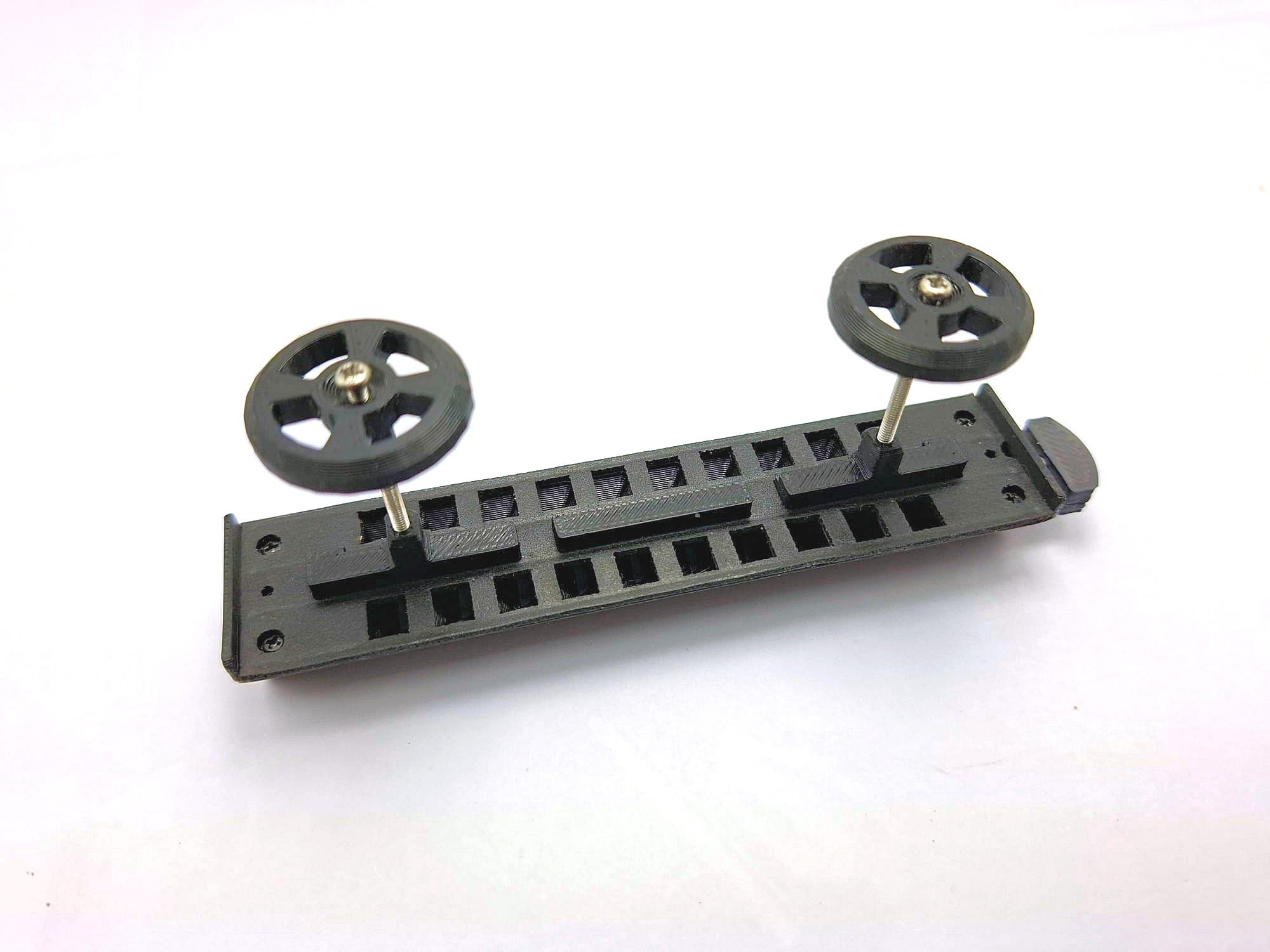

Switch-Harp Ready to Assemble


Switch-Harp PowerParts Kit

(You finish and assemble it, or commission a customiser to do it for you)

Base Price: £60 (price reduces for multiple buy)

HARMONICA TYPE:

CUSTOMISER:


Also consider adding our easy to fit Gasket Valves for enhanced airtightness and performance!

Tech videos

Video 0 applies only to the PowerParts buying option. Videos 1 and 2 are relevant to all buying options.

Tech 0: Making a Switch-Harp from the PowerParts kit

Tech 1: Assembly

Tech 2: Tuning

Items you will need (PowerParts option)

  • Coarse/fine sand paper with flat secure base
  • Sanding sponge block
  • Superglue (thick)
  • Superglue (thin)
  • Wire brush
  • Plastic weld solvent
  • Paintbrush (approx. 10mm wide)
  • Screwdriver (Phillips #1)
  • Hammer
  • Masking tape
  • Thin wire or small nail for applying superglue
  • Vaseline or Slide Oil
  • Vacuum cleaner
  • Ruler
  • Dust mask
  • Wire Cutters
  • Wood Strip for sanding jig (12mm wide)
  • Nails for sanding jig

ORDERING OPTIONS

 The one essential part you require is the Front Unit. However, where appropriate, we recommend you also purchase Gasket Valves. They are specially designed to suit the TwinDiatonic harps. Please watch all the relevant videos above to help you make an informed choice of ordering option.

FINISHED PARTS

If you wish to pay extra for us to do the finishing/assembly of the parts, the choice is yours. It will add about a week to the shipping time. Remember you will still need to supply the harmonicas and fit them to the parts you choose, or get a customiser to do that job.

POWER-PARTS KIT

To slash the price and offer immediate shipping, we've added a Raw Parts Only option for all versions of the Switch-Harp. I've shot a detailed instructional video on how to finish and assemble your PowerParts Kit for it - please watch before you buy! If you're the hands-on type and comfortable working with basic tools, you'll have no trouble following along with the simple steps involved. You'll gain knowledge and satisfaction making it  yourself, and save money in the process. Follow the video closely and you'll be sure to get a good outcome. However our responsibility is only with the PowerParts we make and supply, not with your finishing/assembly skills - the end result is up to you. Or, if you prefer, have the PowerParts Kit sent to harmonica tech/customiser of your choice to do the job for you (see below).

CUSTOMISER OPTION

If you don't fancy finishing the parts yourself then consider commissioning a customiser to do it for you! Please see our recommended customiser(s) below. Once you have agreed a price with them, order the parts here and select their name from the drop down. We will then send the parts to the customiser, who will do the job and send you the finished product. You may wish to go a step further and also send your harps to the customiser for them to fit for you (the price and terms for this are between you and them.)

Andre Coelho
Portugal customiser

A Brazilian living in Portugal, Andre does excellent harmonica custom work.
Email
Linktree

Open Door Harmonicas
USA customiser

Open Door Harmonicas provides custom harmonicas and repair services by harmonica tech Burke Trieschmann.

Email
THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic THS Diatonic

BUYERS' COMMENTS

Check out Kevin McCarthy playing his OctaHarp in a session.
" Excited to have my Melody Maker Switch Harp in hand for the first time! The sound is excellent. The mechanism will take some getting used to. Specifically, the slider movement is not like a chromatic because instead of having the slider move while everything else stays static, on the Switch Harp the entire mouthpiece moves within your mouth. Or alternatively, the slider stays fixed on your lips and the mass of the two harmonicas behind moves.

After a few more minutes of play - a few more impressions. I'm comparing my Melody Maker Switch Harp to a Melody Maker X-Reed Sub-30, another fine harp!

And now I'm realizing that if I push the harp further into my mouth and rest my lips on the covers, the slide moves more freely. Tongue blockers might like that embouchure more than pucker players like me!

And the more I play the more I like it! Truly a novel and unique harmonica with an excellent tone.

Jazmaan, From Brendan's Forum (Feb 2018)

" I really like my switch harp.

Mine is a basically a pair of half- Valved Paddy Richter's. I haven't had as much time to play or experiment with it as I would have liked but it is a blast so far. The moving mouthpiece feels odd and unwieldy for about 20 minutes, and then it is no problem at all and feels natural. I can play fully chromatically with the button and bends, and can color every note with blow or draw bends or the slide. It's a blast. I will probably be retuning some more reedplates so I can make other combinations.

It's awesome. You could build a case to hold a set of comb/ cover combinations and be ready to switch out in moments. "

CrawfordES, From Brendan's Forum (Feb 2018)
